Kategorie: GEKO Garden \ Electric Motors

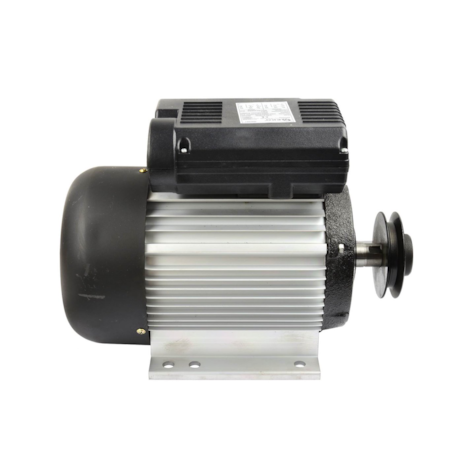

Power Motor 1.5KW 230V single phase

Product code: G80360
EAN code:5901477150913
Brand GEKO/
Unit: pcs
Unit packaging
opakowanie jednostkowe
A B C Weight
280 240 390 13,000


VARIANTS

EAN Weight Code Name
5901477150913 13kg G80360
5901477150920 16,44kg G80361
5901477150937 25,1kg G80362


DESCRIPTION

Single Phase Power Motor 1.5 kW (2.0 KM).


Technical Data



  • Power: 1.5 kW (2.0 KM)

  • Rated Voltage: 230V / 50 Hz

  • Rated Current: 9.36 A

  • Rotary Speed: 2800 rpm

  • Duty: S1 continuous

  • Protection Class: IP44





























































Dimensions(mm)
E8 mm
D24 mm
L55 mm
Lm275 mm
K11 mm
C50 mm
B125 mm
Y174 mm
AD147 mm
H91 mm
A140 mm
AB165 mm


TECHNICAL SPECIFICATIONS

Availability:
Brand:
We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
