| A | B | C | Weight |
|---|---|---|---|
| 160 | 220 | 370 | 5,500 |

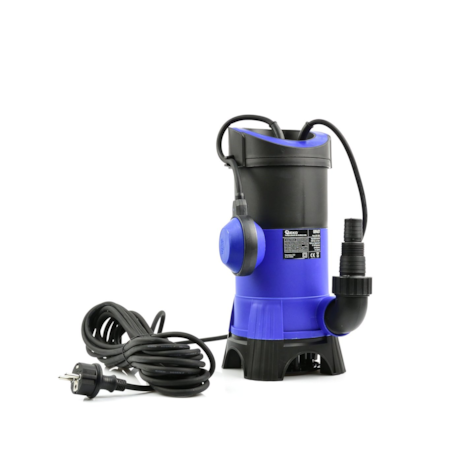

Submersible pump for clean / dirty water equipped with a single-phase motor with a real power of 1100W. The reinforced plastic vortex rotors crush contaminants with a diameter of up to 35mm (solids content <2%). The motor also has thermal overload protection.
The float switch prevents the pump from running "dry", thus extending its service life. It performs the function of an automatic switch, so when the water level drops to a minimum, the pump switches itself off.
The maximum head is the height at which the pump can pump the liquid: our pump lifts the liquid up to 10 meters. The pump can be submerged up to a depth of 7 meters.
Low weight of the device thanks to the housing made of durable structural plastic.
The pump model Q1DP-1100N1 is ideally suited for:
pumping water from water reservoirs,
watering the garden,
drainage,
collecting rainwater,
pumping out water from swimming pools,
drainage of water from flooded basements,
for draining clean and slightly dirty water.
Technical Specifications:
Power supply: 230V / 50Hz
Power: 1100W
Maximum flow: 15,000 liters / hour
Maximum lifting height: 10 m
Maximum depth: 7 m
Pump outlet: 1 ", 1-1 / 4", 1-1 / 2 "
Power cord length: 10 m
Material: engineering plastic
Maximum temperature of pumped liquid: 35 ° C
Waterproof class: IPX8
