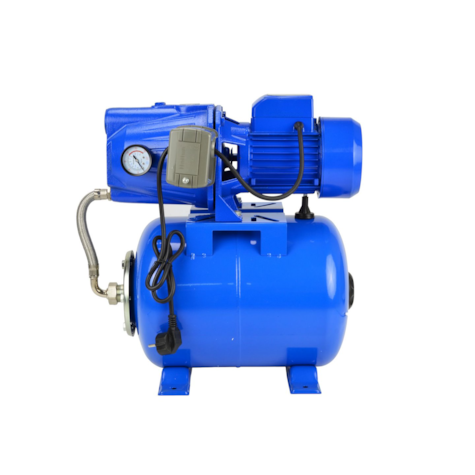

Complete hydrophore set, mounted with diaphragm tank. Self priming pumps are centrifugal pumps that can use an air/water mixture to achieve a fully primed pumping position. JET series self-priming pump is designed for clear water, it can be used to lift water fromboreholes,pond and reserviors, it also can be used for watering gardens,orchards, water injection supply, car washing as well as for domestic water supply.

Product Features

• Powerful 1100W motor with copper winding


• Asynchronous motor closed and cooled by external ventilation


• Tank volume 24L


• Flow rate up to 60 l/min


• Maximum working pressure: 8 bar (800 kPa)


• Liquid temperature up to +40°C


• Suitable for clear water: PH 6,5 - 8,5


• Solid impurity no more than 0,1%

Technical Data

• Power Consumption: 1100W


• Max. Absorbtion Height: 8 m


• Max. Discharge Distance: 50 m


• Flow: up to 60 L/min


• No-load Speed: 3450 rpm


• Connecting Hose Type: Thin 30


• Max. Ambient temperature: +40°C


• Cooling: External ventilation


• Pumpbody: Cast Iron


• Motor Wounding: Copper Wire


• Motor Housing: Aluminum


• Degree of Protection: IP44


• Insulation Class: B
