Kategorie: Welding Equipment and Accessories \ MIG MAG Devices Welding Equipment and Accessories \ MMA Devices Welding Equipment and Accessories \ TIG Devices Welding Equipment and Accessories \ Multi-process Devices

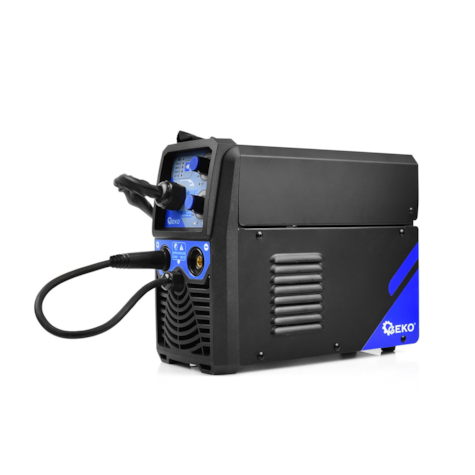

Welding Machine MIG/TIG/MMA 160A

Product code: G80097

EAN code:5901477169335

Brand

None

Unit: pcs

Packaging: Small box

Net wgt.: 6.700 kg

Gross wgt.: 7.850 kg

Unit packaging

A	B	C	Weight
330	240	460	7,850

Description

Technical Specifications

DESCRIPTION

The inverter welder is used for MIG / MAG welding. The welder uses a high power IGBT to transmit frequencies 50 / 60Hz to 20kHz. The advantages of the welding machine include, among others, energy saving and the possibility of automatic correction of voltage pulsations, low sparking, high duty cycle.

Product Features:

Ergonomic carrying handle
For MIG / MAG welding.
High power IGBT transistor for frequency transmission
Regular wire feed speed
Quiet operation without electromagnetic noise

Technical data:

Working mode: MIG / TIG / MMA

Supply voltage: 230V

No-load voltage: 16-22A

Frequency: 50Hz

Supported wire diameters: 0.6 / 0.8 mm

Supported electrode diameters: 2.5 mm - 4 mm

Welding methods: MIG / TIG / MMA

Rated welding cycle: 60%, low heat emission!

Welding current: 30-130 A (MIG), 20-120A (MMA), 10 - 120A (TIG)

Wire speed: 3-15 m / min

The composition of the set:

MIG / TIG / MMA welder

DIN ground cable with clamp

Welding mask

Cleaning brush

Mass welding cable

Technical Data

Wire Dia. Size	0,6 - 0,8 mm
MMA Electrode Size	1,6 - 4,0 mm
No-load Voltage	55V
I_1max	29.6 A
I_1eff	22.9 A
Power Factor	0.93

MIG

MIG Duty Cycle	60%	100%
Current	160 A	124A
Voltage	22.0 V	20.2 V

MMA

MMA Duty Cycle	60%	100%
Current	160 A	124 A
Voltage	26.4 V	25.0 V

TECHNICAL SPECIFICATIONS

Availability:

Over 14 days

We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
