| A | B | C | Weight |
|---|---|---|---|
| 255 | 250 | 400 | 8,800 |
The modern MIG/MAG/MMA-160A welder is a versatile device for demanding users—both DIY enthusiasts and professionals. Thanks to a wide range of welding methods, intelligent control, and real output power up to 160A, the machine ensures stable and repeatable weld quality.
Unlike many cheaper alternatives with inflated specifications, this welder delivers a true maximum welding current of 160A.
This means:
stable welding arc,
no power drops under load,
ability to work with thicker materials without compromise.
Welding processes: MIG/MAG (with gas), FLUX (gasless, flux-cored wire), MMA, TIG DC Lift
Control / modes: Digital SYNERGIC control (MIG), voltage/arc correction ±2 V, selection: Solid 0.8 / Solid 1.0 / Flux 0.8 / Flux 1.0 / MMA / Lift-TIG
Support functions: Hot Start, Arc Force, Anti-Stick, LED lighting
Power supply: 230 V / 50 Hz
Rated input power: 4.5 kVA
Open-circuit voltage (U0): 65 V
Output current range: MIG: 20–160 A | MMA: 20–140 A | TIG: 10–160 A
Duty cycle: (40°C) 30% @ 160 A
Welding wire diameters: O 0.8 / 0.9 / 1.0 mm
MMA electrode diameters: O 1.6–4.0 mm
Spool capacity: 1 kg (D100)
Protection class: I (PE)
Enclosure protection rating: IP21S (protection against dripping water in stationary position)
Insulation class: H
Net weight: 8 kg
Dimensions (W x D x H): 40 x 24.5 x 25.5 cm
The device supports the most popular welding methods:
MIG/MAG (with gas) – fast and efficient gas-shielded welding
ideal for structural steel
clean, aesthetic welds
high productivity
FLUX (gasless) – flux-cored self-shielded wire welding
ideal for outdoor work (wind, no gas cylinder)
quick setup
MMA (stick welding) – universal method for various materials and conditions
perfect for assembly and repair work
supports electrodes O 1.6–4.0 mm
TIG DC Lift (optional) – precise TIG welding
TIG welding possible after purchasing a TIG-Lift torch
precise welds, ideal for stainless steel and thin elements
The welder features intelligent synergic control that automatically selects welding parameters.
Solid 0.8 / 1.0 – for solid wire (MIG/MAG)
Flux 0.8 / 1.0 – for flux-cored wire (gasless)
MMA – stick welding mode
TIG Lift – TIG welding mode (optional torch required)
adjustable ±2V – precise arc tuning to user preference
Even less experienced users can achieve professional results.
The device is equipped with a modern control panel with display:
shows current welding current
indicates selected mode
ensures intuitive operation and quick setup
For maximum comfort and quality, the welder offers:
Temporarily increases current at arc ignition, making it easier to strike the arc—even on rusty or dirty surfaces—and reducing electrode sticking.
Automatically adjusts current when the arc becomes unstable or too short, improving weld pool control and penetration. Enhances arc stability and ease of use.
Detects electrode sticking and immediately reduces current, preventing overheating and allowing easy detachment without damaging the weld. Also protects the machine from overload.
Integrated LED light above the front panel illuminates the work area and control panel, making operation easier even in low-light conditions.
4 welding methods in one device
REAL 160A power
Synergic control – easy to use
Gas and gasless welding
TIG (Lift) capability
Rich starter kit
Compact and portable design

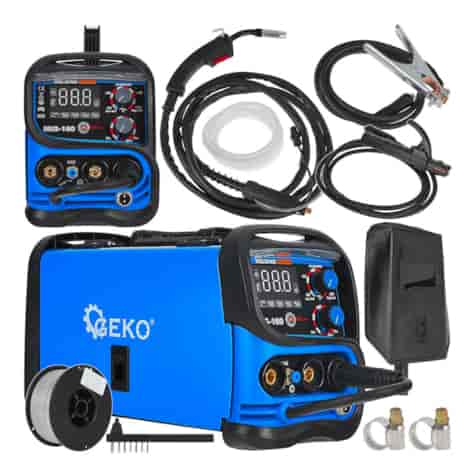

Included in the package:
MIG/MAG torch
MMA holder
ground cable
welding mask
gas hose + clamps
hammer with brush
0.8 mm flux-cored wire
You can start welding with the FLUX method right out of the box—no additional purchases needed!
