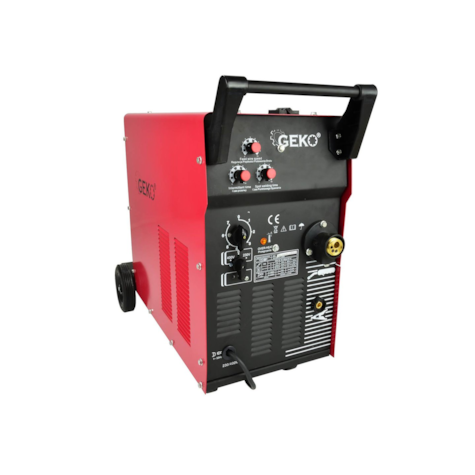

Transformer DC MIG/MAG Welder 250A SUPER 230/400V

Product Features

• Flexibility of use with a wide range of materials such as : steel, stainless steel and aluminium


• Input voltage 230V or 400V


• Regulation knobs for: feed wire speed, intermittent time, spot welding time


• Portable, fan-cooled, with thermal protection


• Over-heat warning indicator


• 4 wheels for easy transportation

Technical Data

• Input Voltage: 230V/400V


• Duty Cycle @ 15%: 250A - 26,5V


• Duty Cycle @ 35%: 163A - 22V


• Duty Cycle @ 60%: 125A - 20V


• Duty Cycle @ 100%: 96A - 18,8V


• Welding Current Range: 80A - 250A ; 18,8V - 26,5V


• No Load Voltage: up to 42V


• Gas Type: CO2, Argon, CO2/Argon Mix


• Voltage Steps: 7


• Weldable Wire Sizes: 0,8mm - 1,6mm


• Feeding Speed: 2,5 - 20m/min


• Welding Plate Thickness: 0,8 - 10mm


• Input Capacity: 10,4kW


• Input Fuse: 30A


• Protection: IP21


• Insulation Class: H


• Weight: 37,5kg

Package Contents:

• MIG Welding Machine


• MIG Welding Torch with cable and accessories


• Earth Clamp with cable


• Welding mask


• Welding brush & hammer


• Manual
