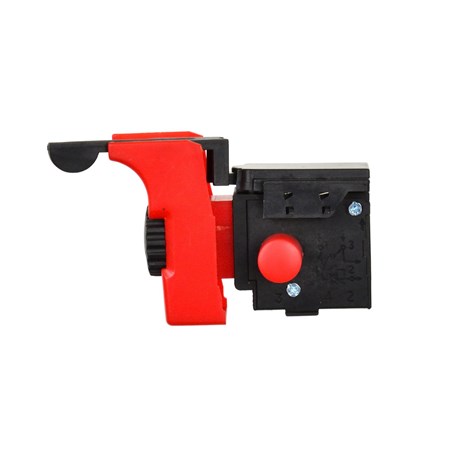

Switch for two-speed drill

Push-button switch with speed control, reverse rotation right/left, and switch lock in the permanent ON position.

In the permanent ON position, the speed depends on the setting of the knob in the main button.

Electrical connectors of the button module: 2x twisted + 2x quick couplers

Electrical connections of the direction of rotation switch: 4x quick couplers

Dimensions:

• outer length (with button and direction lever): 79 mm


• outer width (+ lock button): 17 + 16 mm


• external height: 47 mm


• switch key: 46 x 21 x 27 mm


• diameter of the lock button: 11 mm


• speed knob diameter: 18 mm
