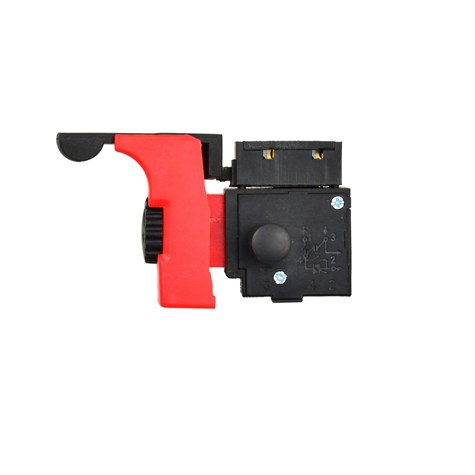

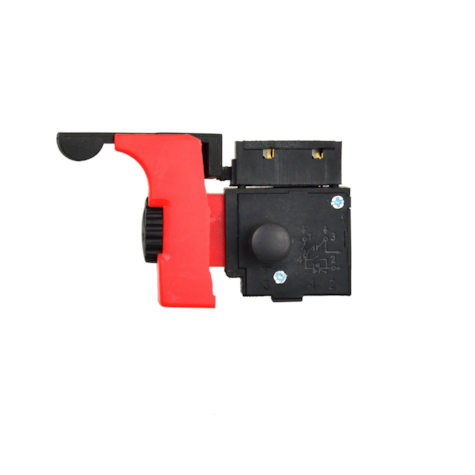

Switch for grinding machine TN-26(type DWT)

Switch for grinding machine TN-26(type DWT)

Product code: G00407
EAN code:5901477102516
Brand
None
Unit: pcs
Net wgt.: 0.010 kg
Gross wgt.: 0.010 kg
Unit packaging
opakowanie jednostkowe
A B C Weight
30 45 80 0,010

DESCRIPTION

Press switch for DWT drilling machine. It has speed regulation, right/left rotation regulation, and a switch lock in the permanent ON position.


Electrical joints of the button module: 2x twisted + 2x quick couplers


Electrical joints of the direction of rotation switch: 4x quick couplers


Dimensions:



  • outer length (with direction lever and lock button): 78 mm

  • outer width: 17mm + 17mm (lock)

  • outer height (with direction lever): 50 mm

  • switch key: 46 x 21 x 27 mm

  • diameter of the lock button: 11 mm

  • speed control knob diameter: 18 mm

TECHNICAL SPECIFICATIONS

Availability:
On hand
We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
