Switch for Ferm drill

Switch for Ferm drill

Product code: G00404
EAN code:5901477102486
Brand
None
Unit: pcs
Net wgt.: 0.035 kg
Gross wgt.: 0.037 kg
Unit packaging
opakowanie jednostkowe
A B C Weight
35 50 80 0,037

DESCRIPTION

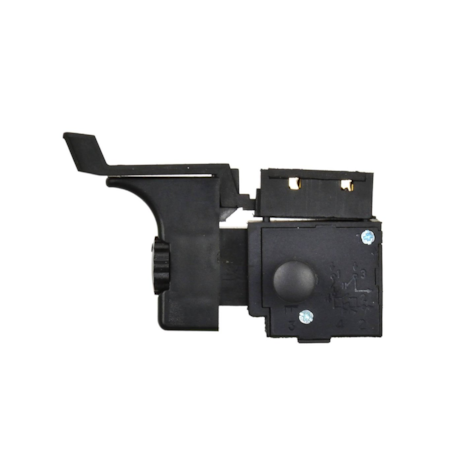

Push-button switch for FERM drill. It has speed regulation, right/left rotation direction regulation, and a switch lock in the permanent on position.


Electrical joints of the button module: 2x twisted + 2x quick couplers


Electrical joints of the direction of rotation switch: 4x quick couplers


Dimensions:



  • outer length (with direction lever and lock button): 80 mm

  • outer width: 17mm + 17mm (lock)

  • outer height (with direction lever): 50 mm

  • switch key: 39 x 13 x 29 mm

  • diameter of the lock button: 11 mm

  • speed control knob diameter: 15 mm

TECHNICAL SPECIFICATIONS

Availability:
On hand
We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
