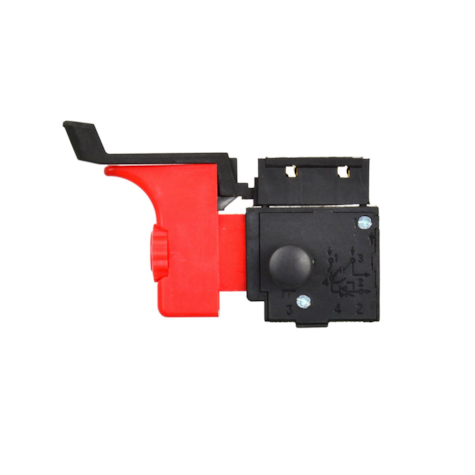

Switch for drill TN-12

Switch for drill TN-12

Product code: G00410
EAN code:5901477102547
Brand
None
Unit: pcs
Net wgt.: 0.033 kg
Gross wgt.: 0.033 kg
Unit packaging
opakowanie jednostkowe
A B C Weight
30 50 80 0,033

DESCRIPTION

Push-button switch with speed control, reverse rotation right/left, and switch lock in the permanent ON position.


Electrical connectors of the button module: 2x twisted + 2x quick couplers


Electrical connections of the direction of rotation switch: 4x quick couplers


Dimensions:



  • outer length (with button and direction lever): 80 mm

  • outer width (+ lock button): 17 + 16 mm

  • outer height (with direction lever): 53 mm

  • switch key: 39 x 13 x 29 mm

  • diameter of the lock button: 11 mm

  • speed knob diameter: 15 mm

TECHNICAL SPECIFICATIONS

Availability:
On hand
We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
