Switch for drill TN-02 - Platforma SolexB2B

Kategorie: GEKO Power Tools \ Spare Parts for Power Tools \ Switches

Product code: G00411

EAN code:5901477102554

Brand

Unit: pcs

Unit packaging

A	B	C	Weight
35	40	80	0,039

Description

Technical Specifications

DESCRIPTION

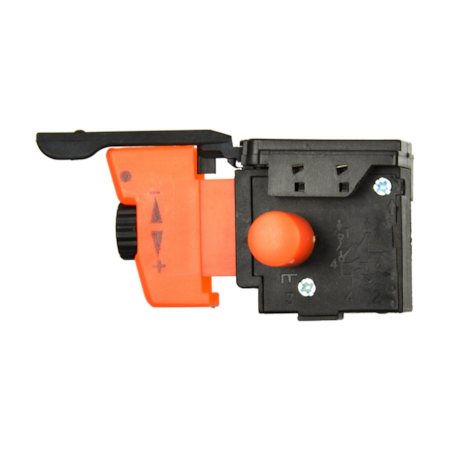

Push-button switch for drill. It has speed regulation, right/left rotation regulation, and a switch lock in the permanent ON position.

Electrical connectors of the button module: 2x twisted + 2x quick couplers

Electrical connections of the direction of rotation switch: 4x quick couplers

Dimensions:

outer length (with direction lever and lock button): 62 mm (76 mm)

outer width: 16mm + 17mm (lock)

outer height (with direction lever): 40 mm

switch key: 33 x 12 x 20 mm

diameter of the lock button: 11 mm

speed control knob diameter: 12 mm

We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
