Switch for drill TN-01

Product code: G00412A
Brand
None
Unit: pcs
Unit packaging
opakowanie jednostkowe
Weight
0,000


DESCRIPTION

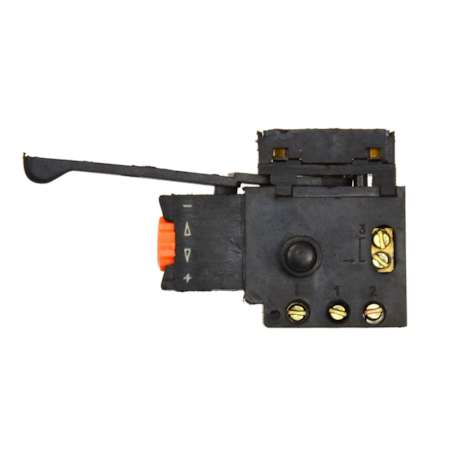

Push-button switch for drill. It has speed regulation, right/left rotation regulation, and a switch lock in the permanent ON position.


Button module electrical connections: 5x twisted connectors


Electrical connections of the direction of rotation switch: 4x quick couplers


Dimensions:



  • outer length with direction lever: 79 mm

  • outer width: 16mm + 12mm (lock)

  • outer height (with direction lever): 41 mm

  • switch key: 19.5 x 11 x 18 mm

  • diameter of the lock button: 8.5 / 6 mm

  • speed control knob diameter: 12 mm



TECHNICAL SPECIFICATIONS

Availability:
We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
