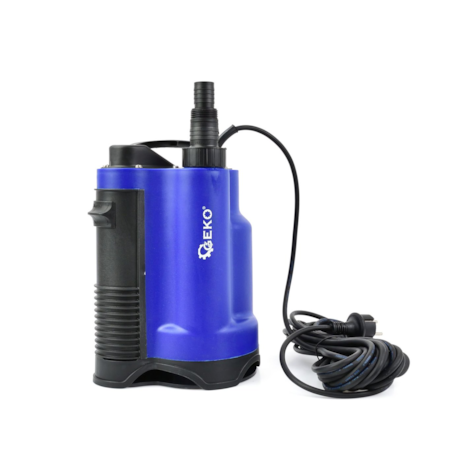

Plastic sumbersible dirty water pump 750W with internal float switch

Submersible clean & dirty water pump.

The pump model Q1DP-750K is ideal for::

• pumping water from water reservoirs,


• watering the garden,


• drainage,


• collecting rainwater,


• pumping water out of swimming pools,


• draining water from flooded basements,


• for draining clean and slightly dirty water.

Single-phase motor with the real power of 750W. Plastic "vortex" impellers with a reinforced structure grind impurities up to 16mm in diameter (the number of solid particles <2%). The motor is also equipped with thermal overload protection.

The built-in float switch prevents the pump from running dry, thus extending its life. An automatic switch, thanks to which when the water level drops to a minimum, the pump will turn itself off. The pump is equipped with a switch that allows it to work in automatic or manual mode.

The maximum head is a height of up to 9 meters. The pump can be submerged to a depth of 7 meters.

Technical specification:

• Power supply: 230V / 50Hz


• Power: 750W


• Maximum flow: 13,000 liters/hour


• Maximum lifting height: 9 m


• Maximum depth: 7 m


• Pump outlet: 1", 1-1/4", 1-1/2"


• Power cord length: 10m


• Material: engineering plastic


• Maximum temperature of the pumped liquid: 35°C


• Waterproof rating: IPX8


• Power cord specification: H05RN-F 3G*1.0mm2


• Additional information: built-in float switch with manual operation mode
