| A | B | C | Weight |
|---|---|---|---|
| 150 | 60 | 350 | 1,400 |

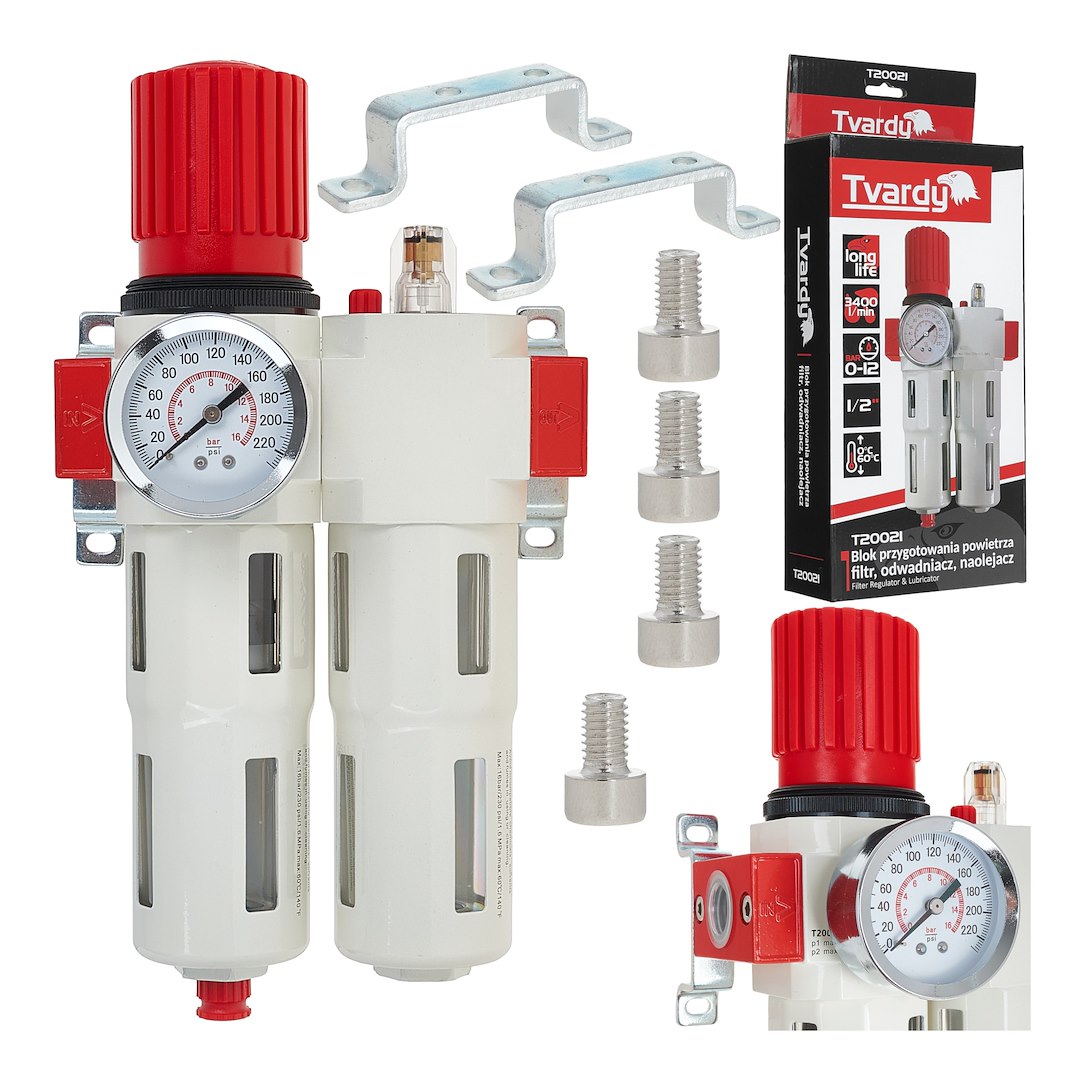

Professional Air Preparation Unit by Tvardy is a complete set designed for operating pneumatic installations. The device combines a pressure regulator, filter, moisture separator, and lubricator, ensuring that the air supplied to pneumatic tools is clean, dry, properly pressurized, and enriched with an oil mist. Such a setup significantly extends tool lifespan while improving comfort and safety at work.
Thanks to the built-in pressure gauge, the operator has full control over system pressure, while the solid construction made of aluminum alloy and polycarbonate guarantees durability and resistance to intensive use.
4-in-1 – regulator, filter, moisture separator, and lubricator in one device
Precise pressure adjustment within the range of 0–12 bar
Built-in pressure gauge (0–16 bar / 0–230 psi) for continuous monitoring
Standard 5-micron filter (optional replacement with 40 µm)
High flow capacity – up to 3400 l/min at maximum pressure
Sturdy construction: aluminum alloy housing and cover, polycarbonate containers
1/2" air connection – compatible with most installations
Ergonomic adjustment knob with lock
Pressure adjustment range: 0 – 12 bar
Operating temperature range: 0°C to +60°C
Air connection: 1/2"
Housing material: aluminum alloy
Filter and lubricator containers: polycarbonate
Container cover: aluminum alloy
Filter: 5 µm (replaceable with 40 µm)
Flow rate (Qmax): 3400 l/min
Pressure gauge scale: 0 – 16 bar / 0 – 230 psi
The air preparation unit is ideal for use in:
automotive workshops,
production lines,
pneumatic installations,
pneumatic tools (impact wrenches, grinders, drills),
compressors and industrial equipment.
With this unit, your tools will run longer and more efficiently, while the entire pneumatic system will be protected against moisture, impurities, and dry air.
Air preparation unit (regulator + filter + moisture separator + lubricator + pressure gauge)
2 mounting brackets
4 mounting screws
