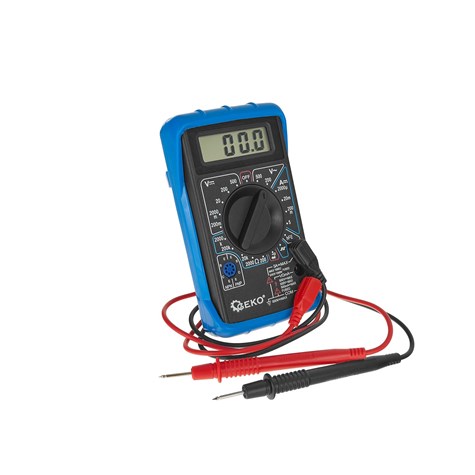

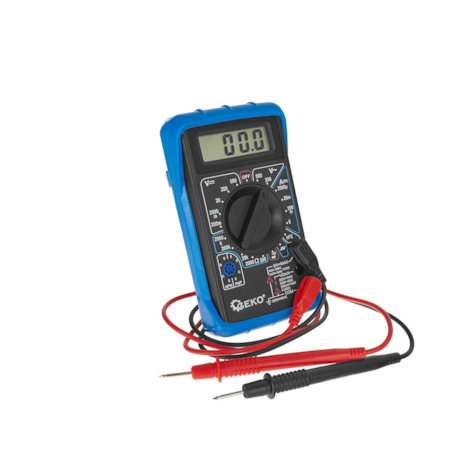

Digital multimeter with buzzer

This multimeter is a versatile measuring tool that will prove useful in various applications, allowing for precise measurements and control of various electrical parameters.

1.


   Direct Current Voltage Measurement (DC):





   • Measurement ranges: 0.2 - 2 - 20 - 20 - 200 - 500 V






2.


   Alternating Current Voltage Measurement (AC):





   • Measurement ranges: 200 - 500 V






3.


   Direct Current Measurement (DC):





   • Measurement ranges: 0.2 - 2 - 20 - 200 mA and 5 A






4.


   Resistance Measurement:





   • Measurement ranges: 0.2 - 2 - 20 - 200 - 2000 Ω






5.


   Transistor and Diode Testing Function:





   • This function allows testing transistors for their proper operation and checking diodes for their conduction direction.






6.


   Continuity Testing Function (buzzer):





   • This function uses a buzzer to signal whether two points are connected, which is useful for checking continuity in electrical circuits.






7.


   Square Wave TTL Generator Function:





   • The TTL square wave generator function allows for generating a rectangular wave in the TTL (Transistor-Transistor Logic) standard. It is a useful tool in digital electronics for testing and analyzing digital circuits.





Technical Specification
