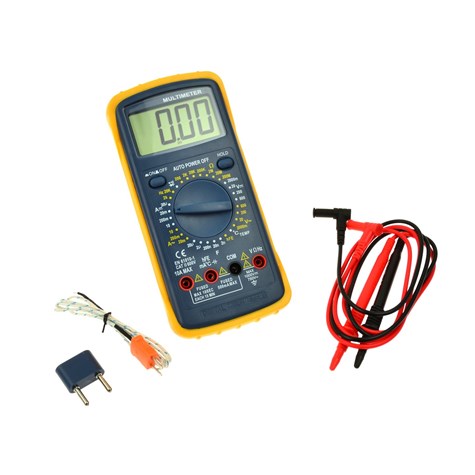

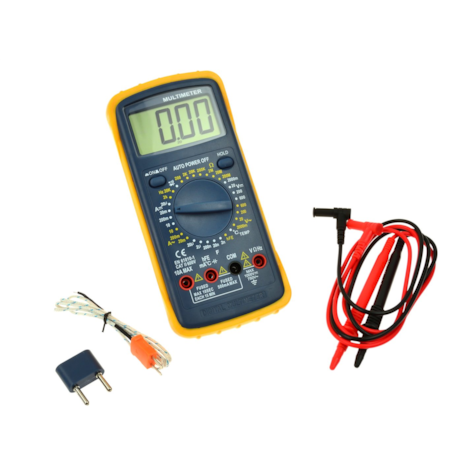

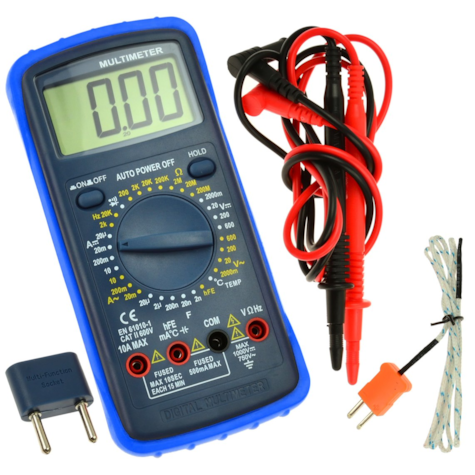

Digital multimeter premium 5808

The GEKO Premium 5808 digital multimeter is a practical tool for electricians, hobbyists, and general household use. It is easy to operate and features many different functions for measuring current, voltage, and resistance, as well as continuity, transistor, and diode testing.

Product Features

• LCD Display 66x34mm


• Data Hold - it captures the display reading when pressed


• Auto Power Off Fuction


• Low battery voltage indication


• Shockproof Protection


• Includes 2 x Test Probe and standard K -type thermocouple

Technical Data

• Type: Digital Multimeter


• Display type: LCD (1999)


• DC Voltage:: 200mV - 600V


• DC Voltage Accuracy:: ±0,5%


• AC Voltage: 2000m - 600V


• AC Voltage Accuracy: ±1.0


• DC Current: 20µA - 10A


• DC Current Accuracy: ±1.8%


• AC Current: 20m - 10A


• AC Current Accuracy: ±2%


• Resistance: 200Ω - 200MΩ


• Resistance Accuracy: ±1.0%


• Frequency: 2k - 20kHz


• Frequency Accuracy: ±3.0%


• Capacitance: 2n - 20µF


• Capacitance Accuracy: ±4.0%


• Temperature: -40 to +1350°C


• Temperature Accuracy: ±1.5%


• Diode Test: Yes 2.8V


• Continuity Buzzer: Circuit resistance R <10Ω


• Low Battery Indicator: Yes


• Size: 200 x 98 x 47mm


• Weight with Battery: 310g


• Powered by: Battery 9V 6F22


• Protection: fuse 500mA


• Safety Standard: EN 61010-1 CAT II 600V
