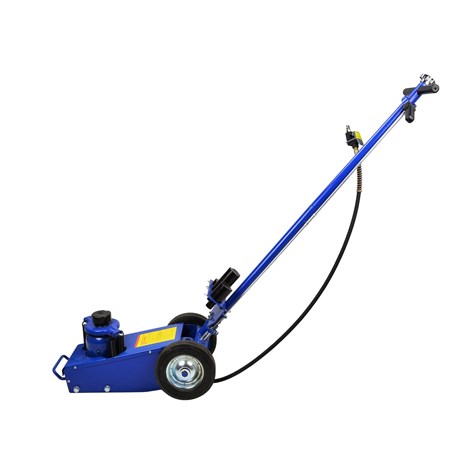

Air Jack 22T

Air Jack 22T

Product code: G01068
EAN code:5901477106774
Brand GEKO/
Unit: pcs
Net wgt.: 36.000 kg
Gross wgt.: 38.000 kg
Unit packaging
opakowanie jednostkowe
A B C Weight
412 360 650 38,000

DESCRIPTION

Product Features



  • Working capacity up to 22 ton

  • Heat treated cylinder wall and chromed piston

  • Piston is retracted by 4 springs

  • Including adapters: 1x broad saddle with diameter 68 mm, height 20 mm; 3x: diameter 48 mm, heights 20/60/100 mm

  • Air consumption 300 l/min

  • Overload and bypass safety valves

  • Large 180mm rear wheels for easy positioning


Technical Data



  • Working Capacity: 22 tonne

  • Minimum Height: 220+20 mm

  • Maximum Height: 435+100 mm

  • Air Pressure: 7,5 - 8,5 bar

  • Compressed Air Connection: 1/4"

  • Wheel Diameter: 180 mm

TECHNICAL SPECIFICATIONS

Availability:
On hand
Max. load capacity [tons]:
22
We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
