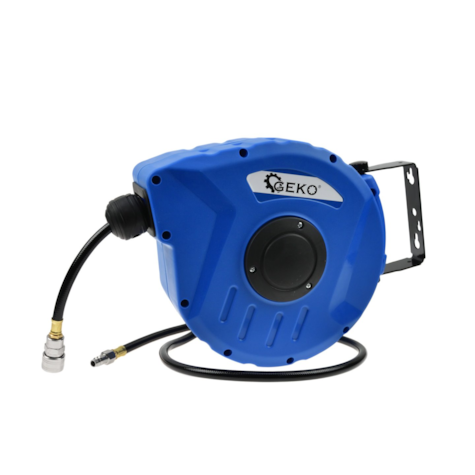

Air hose on reel 10m 8x12mm

Air hose on reel 10m 8x12mm

Product code: G03190
EAN code:5901477161360
Brand GEKO/
Unit: pcs
Net wgt.: 3.550 kg
Gross wgt.: 3.670 kg
Unit packaging
opakowanie jednostkowe
A B C Weight
160 290 340 3,670

DESCRIPTION

Pneumatic hose on a reel made of high quality reinforced PVC material. It is characterized by high resistance to high pressure. The reel is equipped with automatic blockade preventing the hose from self-winding, and hanger allowing the hose to be hung on the wall.


Product Features:



  • High pressure resistance

  • Hose made of reinforced PVC

  • Hose reel with locking mechanism and braking system

  • Fitted with bracket so it can be mounted on the wall or ceiling and rotated up to 180°

  • Included mounting pins


Technical Data



  • Output Hose Length: 10 m

  • Input Hose Length: 1 m

  • Inner and Outer Diameter: 8 mm / 12 mm

  • Air Inlet Size: 1/4"

  • Working Perssure: 8 bar

  • Burst Pressure: 24 bar

  • Hose Material: reinforced PVC material

  • Working Temperature: from -5 to +45°C

TECHNICAL SPECIFICATIONS

Availability:
Over 14 days
Inner/outer hose diameter [mm]:
8/12
Length [m]:
10
We have made every effort to ensure that the above data is correct, but we do not guarantee that the published information does not contain errors, which, however, cannot constitute the basis for any claims.
